Injection Molding Electronic Ruler Pull Rod Linear Displacement Sensor, IP67 Level Machine Electronic Ruler Stainless Steel Linear Position Sensors Transducer (KTC-75)
4.7 (55 items)
Limited Time SaleUS$22.37 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220367850 | Release Date | 2026/05/03 | List Price | US$14.92 | Model Number | 220367850 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Displacement Sensor Product Material: Stainless steel Optional : KTC-75, KTC-100, KTC-125, KTC-150, KTC-170, KTC-200 Electrical Stroke: Range + 3mm Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current of Sliding Brush: ≤10μA The Maximum Current of Sliding Brush When Causing Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio of Output Voltage to Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load of Pull Rod: 50KG Work Force: Horizontal Direction: <10N Vertical Direction: ≤10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Damper Resistance Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life:> 100 × 10 ^ 6 times Maximum Operating Rate: 10m / S, maximum operating acceleration 10m / s² Level: The highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessory 4 x Screw

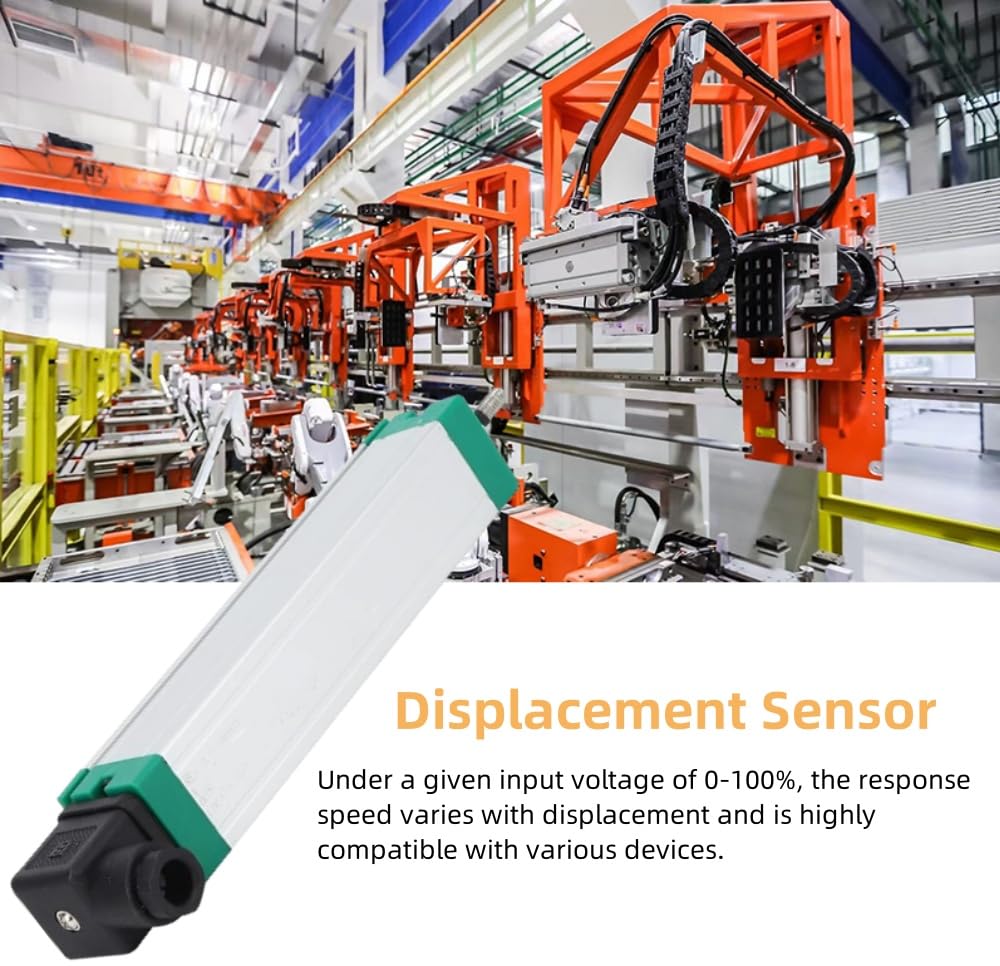

- Displacement Sensor: Machine electronic ruler can reduce transmission loss, support high-definition sound quality, and are highly compatible with various devices.
- Plug-Type Design: Pull pod displacement sensor adopts a plug in design, which is convenient and practical, with no noise output, and has an IP67 protection level.
- Compatibility: Adopting the principle of potentiometers, it changes with displacement at a given input voltage of 0-100%, with fast response, resolution: infinite uninterrupted analysis, repeatability: 0.01mm.
- Antioxidant Material: The Linear sensors is made of stainless steel material, with an antioxidant plug that is not easy to rust. The maximum load of the rod can reach 50KG.
- Scope of Application: Linear position sensor is widely used in fields such as automobiles, plastic machinery, transmission equipment, measurement systems, and cabinets.
| UPC | 760212167600 |
|---|---|
| Brand Name | MeitrciL |
| Part Number | HC4NA1d |
| Manufacturer | MeitrciL |
| Material Type | Stainless Steel |
| Mounting Type | Flange Mount |
| Included Components | Plug |
